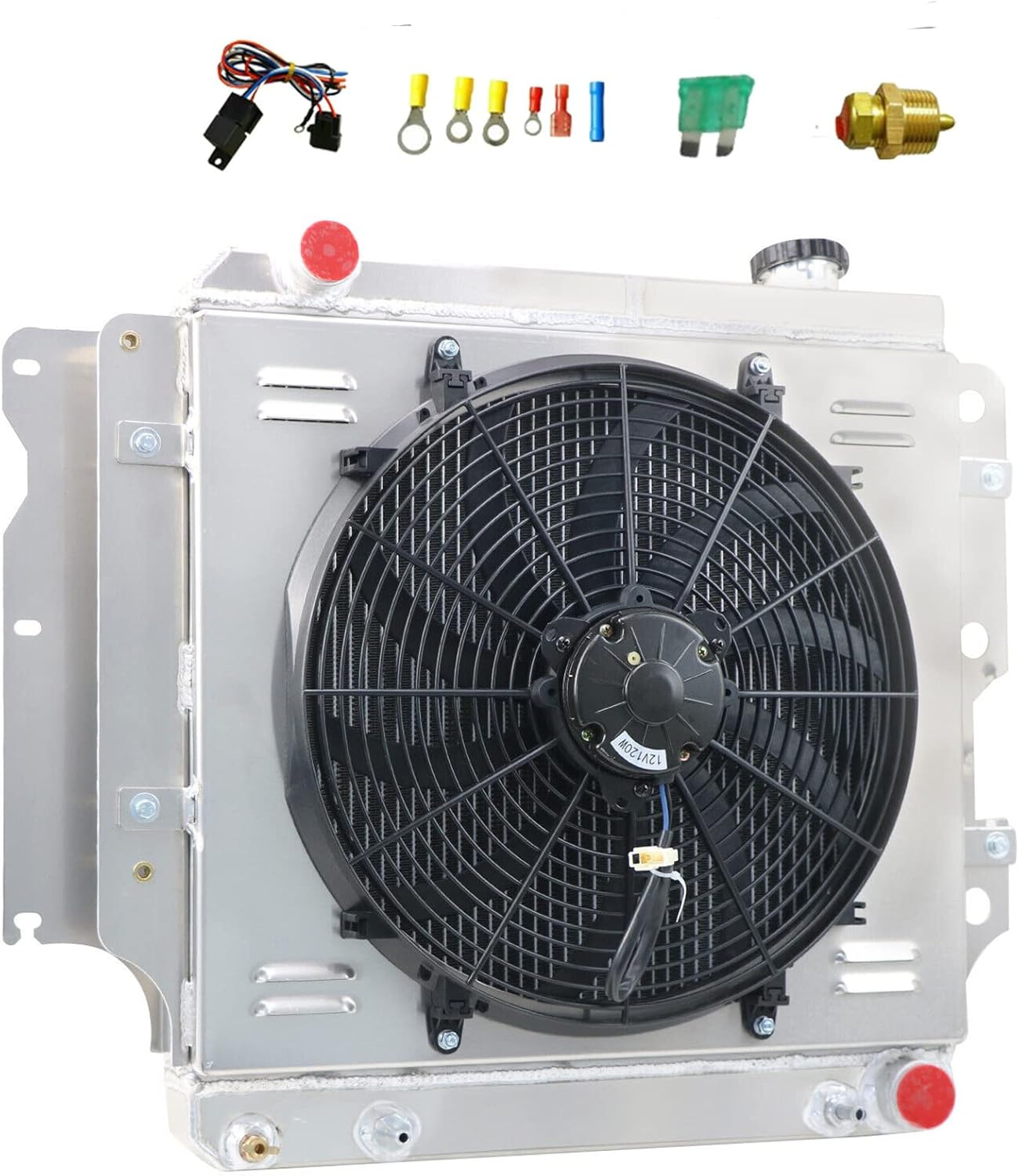

4Row Full Aluminum Radiator+Shroud Fan+Relay Compatible For For Jeep Wrangler TJ YJ & GM Chevy V8 1987-2006 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05
Product details
| Management number | 229617689 | Release Date | 2026/05/31 | List Price | $147.60 | Model Number | 229617689 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Radiator Size: Row: 4 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Size: 18 1/2"H X 20 1/8"W Overall Size: 23 3/8"H X 25 3/4"W Upper HOSE CONNECTION(LEFT): 1 1/2" BOTTOM HOSE CONNECTION(RIGHT): 1 3/4" Transmission: Auto and Manual. Vehicle Fitment: Compatible For 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Jeep Wrangler YJ TJ w/Chevy Engines Automatic and Manual Compatible For 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Jeep Wrangler YJ GM chevy V8 Conversion Automatic and Manual FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
- Core Size: 18 1/2"H X 20 1/8"W / Overall Size: 23 3/8"H X 25 3/4"W; Compatible For Jeep Wrangler TJ YJ & GM Chevy V8 1987-2006 1989 1992 1995 1997 1999 2001 2003 2005
- Racing design/improves cooling by 35 -45% temp. Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme weather. All-aluminum design with durable
- Full aviation-aluminum craftsmanship, 100% welded by TIG; Racing design/improves cooling by 35 -45% temp
- Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
- 100% Leak Tested, 4 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
| ASIN | B09CKW91VT |
|---|---|
| Brand | Cubauto |
| Manufacturer | Cubauto RealCooling Parts |
| OEM Part Number | 8101,CC8101,MC8101,FS2101,CCFK16,RAD8101,KKS8101, SBR8101,CU8101,DPI8101,AE8101,EC8101,RA8101,RK8101,SC8101 |
| Package Dimensions | 28.15 x 25.39 x 8.46 inches |
| Manufacturer Part Number | CUB-A-2148 |
